Standard Product
EcoPod & combination unit
EcoPod standard copper cylinders are available in a wide range of specifications.
ABOUT ecopods
Our Standard Cylinder
The copper cylinders are available in three grades – Grade 1, Grade 2 and Grade 3, with Grade 3 generally being selected for normal domestic use, i.e. water with a PH of 7.5.
ecopod-long life Grades 1 & 2 are made from heavier material and are most often used where there is a greater working head of water or where improved durability is required.
Grades 1 & 2 are made from heavier material and are most often used where there is a greater working head of water or where improved durability is required.
Smaller and larger units available
Connections can be positioned to suit
Simple and easy to install
No maintenance required
100% recyclable
Long life
Test Pressure & Maximum Working Head
Grade 2:
Test Pressure:
2.2
bar
Max. Working Head:
15
m
(49 feet)
Grade 3:
Test Pressure:
1.45
bar
Max. Working Head:
10
m
(33 feet)
Grade 3:
Test Pressure:
1.45
bar
Max. Working Head:
10
m
(33 feet)
Ecopod Range

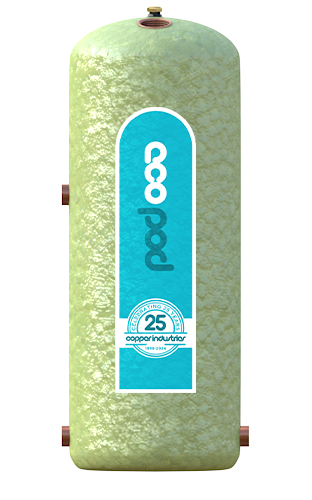

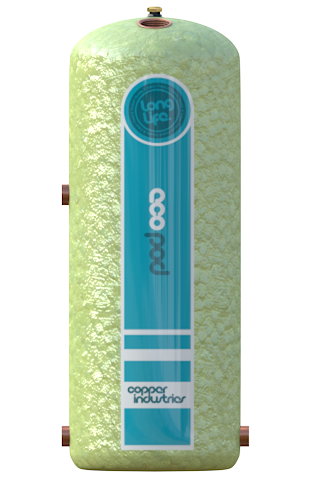

Direct Cylinder

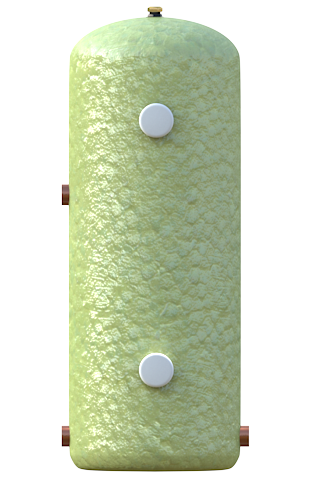

Direct Economy 7/E.S.B. Gold Shield

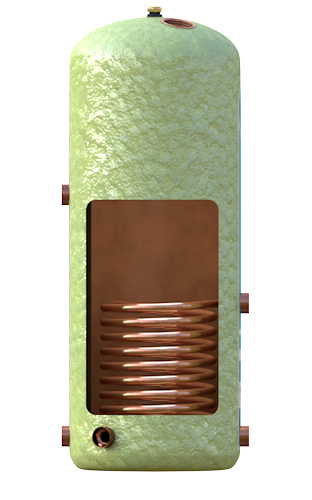

Indirect/Direct

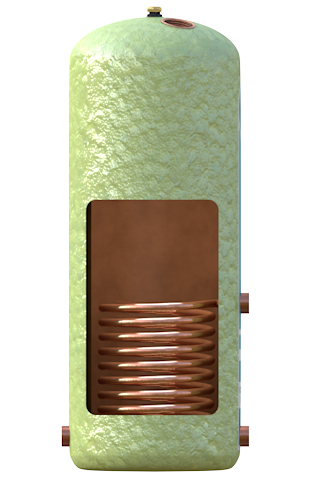

Indirect

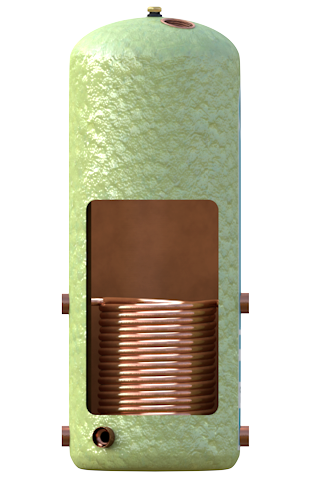

Indirect Twin Coil

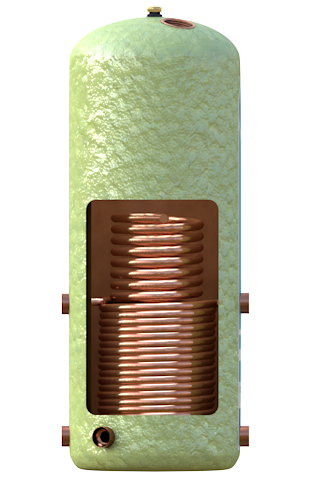

Indirect Triple Coil
EcoPod Combination Unit
The Perfect Cylinder For Apartments
The EcoPod Combination Unit is primarily designed for apartments. This unit can deliver gravity fed or pumped hot and cold water supplies.
Each unit is comprised of a cold water storage tank mounted over an indirect copper cylinder (hot water storage), relevant isolation valves, electric immersion heaters complete with energy cut-out and internal feed and expansion piping.
The entire unit, except the cold water storage lid, is coated with 35mm of environmentally friendly foam insulation.
EcoPod Combination Unit Deluxe
The Perfect Cylinder For Apartments
The EcoPod Combination Unit Deluxe combines a Grade 3 copper cylinder with a black polythene cold feed tank and is a complete steel-framed unit with inter-connecting pipework. These units offer a practical and efficient solution where space and easy installation are an important factor.
Available as indirect and direct, the direct comes with two side entry immersion heaters. All units have 227 ltrs cold storage tanks.
